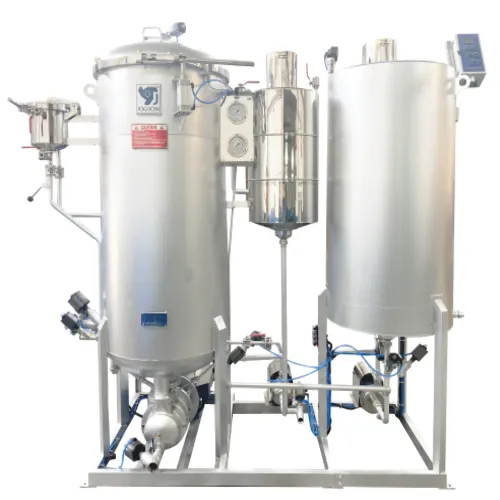

Jogindra Industries Pvt Ltd is an effective HTHP Vertical Dyeing Machine Manufacturer in Delhi. The main advantage of choosing our HTHP Vertical Dyeing Machine is the fact that this machine produces consistent dye quality over every piece within a batch. The vertical design is intended for even dye distribution, implying that fabrics are dyed uniformly without streaks or irregular patches. Every single item of fabric emerges in the same vibrant color and quality, improving the appeal of the finished product.
We are the Best HTHP Vertical Dyeing Machine Suppliers in Delhi
We are the practical HTHP Vertical Dyeing Machine Suppliers in Delhi. All these features make it have a low liquor ratio, meaning that less water, dye, and chemicals are used compared to conventional dyeing. Therefore, it reduces the operational cost exceedingly and thus becomes cost-effective for textile Manufacturers. Advanced heating and cooling systems reduce the time taken for dyeing cycles, therefore enabling higher output production and faster turnarounds of orders-very key in meeting market demands.
Best HTHP Vertical Dyeing Machine Exporters in India
Consider us for all the needs of your HTHP Vertical Dyeing Machine Exporters in India. Besides versatility, the HTHP Vertical Dyeing Machine also comes fitted with the capacity to handle a wide range of fabrics-from very fine to heavy-duty textiles. The machine can dye various types of fabrics without compromising on quality and is thus very valuable for textile Manufacturers. This solution extends the manufacturer's breadth of offering products manufactured from different kinds of fabrics all dyed in the same machine
- Machine body and all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant
- Bi-direction Turbo pump single / double stage for liquor circulation (In-Out & Out-In) with Inverter Drive for varying the speed
- Control panel with JOGSON Dyeing controller, PLC & touch interface (Optional)
- MLR of 1:4.5 (Fully Flooded) 1:4 (Air Pad System)
- Air pad System creates static pressure in the vessel and minimizes the liquor ratio
- Dosing Tank with Injection Pump for dozing the dye liquor into the machine
- High efficient heat exchanger for indirect Heat/cool inside the machine having no heat loss to the ambient
- Variable loading with flexible loading spindles or capacity reducing dummies upto 50% capacity
- HT Drain – the machine can be drained at 130° C without cooling
- Sampling Pot to check the dyeing result while machine is in operation
- Pneumatically operated Top Lid Open / Close, secured with clamp type locking arrangement
- Human / Machine Safety Interlocks
- Compact arrangement of JOGSON Dyeing Pump, Heat exchanger and piping is the main key to floor space saving
- Bi-direction Turbo allows the packages to expand and contract by pressure changes, increasing the effectiveness and eveness in dyeing
- MLR achieved down to 1:4, consumes less dyestuff, chemicals, steam, water & produces less effluent discharge, hence it’s ECO friendly & reduces the production cost in respect to conventional vertical machines
- Inverter driven turbo pump for variable flow control; saves upto 40% power consumption hence more Energy Efficient
- HT Drain at 130°C for oligomers elimination during polyester dyeing process, shortern batch time, effectively removes excess water from the packages
- Variable loading with dummies & airpad maintains constant MLR & Flow Rate
- Reduced loading with single direction pump mode, airpad and partial fill minimizes MLR
- Interchangeable dyeing carriers for Cones, Loose Fiber, Fabric, Muffs, Tops, Bobbin, etc.
- Excellent dyeing result and levelness, reduces yarn loss
- Water level, pressure, distinctive temperature multiple safety interlock, ensure operational safety
